RSD RS-542甲状腺模体,核医学甲状腺模体

RSD RS-542甲状腺模体用于核医学图像研究的人体甲状腺器官的实验模型，
RSD RS-542甲状腺模体是Fission-Product Phantom的一个组成部分，但它也可以单独提供 （带或不带头）。这个模型具有与完整Fission-Product Phantom相同的轮廓。

Thyroid Phantom包含一个带有相应“Superhuman Skeleton”椎骨的颈部，一个带有填充和冲洗端口的空心甲状腺，以及一个组织等效体模材料的前盖。

该组件设计用于快速移除盖板和甲状腺，快速填充同位素溶液和同样快速的重新组装。这允许使用非常短的半衰期的碘。包括一部分锁骨和胸骨以进一步增强体模的真实感。


RSD经常使用同位素制造活动器官以满足用户的需求。可以使用活动胶囊以适合网格孔，或者可以提供空胶囊以由用户填充。

RSD通常提供所需的同位素，但如果需要，用户可以提供它们。

同位素通常作为校准解决方案接收，可溯源至NIST。通过来自校准溶液的微量移液等分试样来控制器官装载。铀和钚可以按质量追溯到NIST。其他同位素通常可通过活动追踪。

有些同位素仅在一年中间隔生产，因此交付需视供应情况而定。在某些情况下，来自政府来源的校准成本会受到很大波动的影响。



RSD RS-542甲状腺模体订购信息：
 型号
RS-500
劳伦斯利弗莫尔现实模体系统包括：躯干和网状躯干覆盖，惰性心脏，肺，淋巴结，肝脏和肝脏包膜或腹部内容物。器官位置和躯干内软组织连续性所需的所有块。文档。永久运输和存储案例。

型号
RS-550
Fission-Product Phantom System，  包括：用于甲状腺通路的头部，颈部，颈部盖板，完整的躯干和网状躯干覆盖物，惰性心脏，肺，淋巴结，甲状腺，肝脏，肾脏，胃，胰腺，脾脏，小肠和大肠。用枢轴螺栓固定腿。文档。永久运输和存储案例。

胶囊
RS-520
活性胶囊（同位素和活性指定）
RS-521
惰性胶囊，带密封盖，由用户填充

Thyroid Phantom
RS-542
没有头的甲状腺模体; 包括颈部，空心甲状腺，甲状腺覆盖，颈椎的一部分，胸骨和锁骨
RS-545甲状
体模型头部; （与RS-542相同，但颈部和颈椎完整）
RS-543A
甲状腺，实心，活性
RS-534S
甲状腺，中空，惰性

胸罩叠板
RS-513
（1,2,3,4）
（A，B，C）    胸部覆盖板（4种厚度中的任何一种）
＃1 - 最薄，＃4 - 最厚
= A）87％脂肪--13％肌肉
B）50％脂肪 - 50％肌肉
C）100％肌肉

RS-514
（A，B，C）    胸部覆盖板
在材料A，B或C中设置为4


The Thyroid Phantom is an integral part of the Fission-Product Phantom, but it can also be supplied separately (with or without a head). This phantom has the same contours as in the full Fission-Product Phantom.

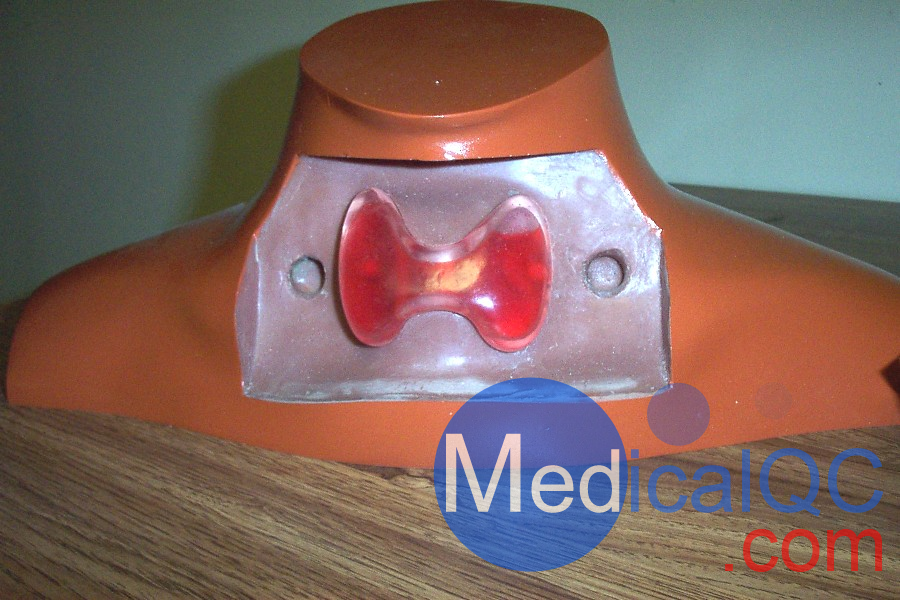

The Thyroid Phantom contains a neck with corresponding “Superhuman Skeleton” vertebrae, a hollow-shell thyroid with filling and flushing ports, and a front cover of tissue-equivalent phantom material.

This assembly has been designed for rapid removal of the cover plate and thyroid, a quick fill with an isotope solution and an equally rapid reassembly. This permits work with iodines of very short half-lives. A portion of the clavicles and sternum are included to further enhance the realism of the phantom.


RSD routinely manufactures active organs with isotopes to suit users’ needs. Active capsules to fit into the gridded holes are available, or empty capsules can be supplied to be filled by the user.

RSD usually supplies the required isotopes, but users may furnish them if so desired.

Isotopes are most often received as calibrated solutions, traceable to the NIST. Organ loading is controlled by micropipetting aliquots from the calibrated solutions. Uraniums and plutoniums are traceable to the NIST by mass. Other isotopes are usually traceable by activity.

Some isotopes are manufactured only at intervals throughout the year, so delivery is subject to availability. In some cases, calibration costs from governmental sources are subject to wide fluctuations.

 Model Number
RS-500

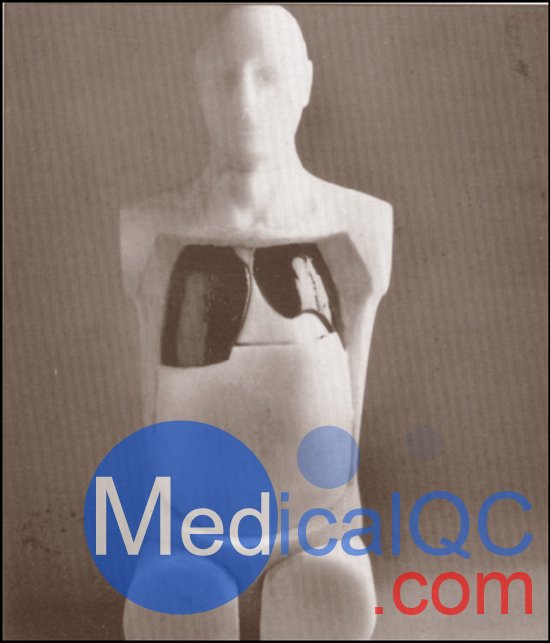

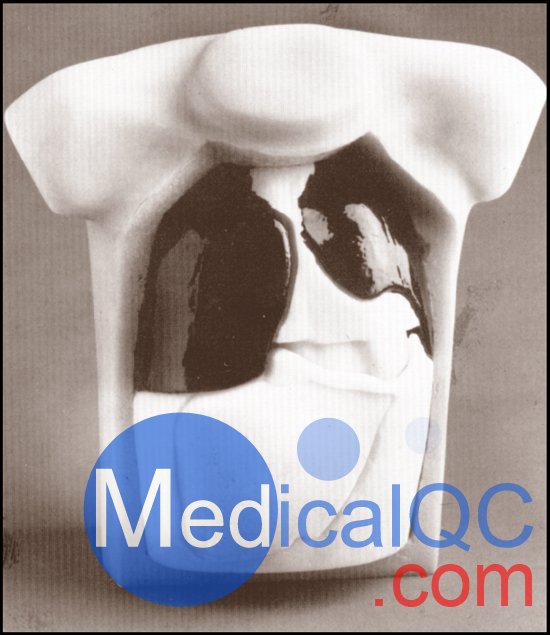

Lawrence Livermore Realistic Phantom System includes: torso and gridded torso cover, inert heart, lungs, lymph nodes, liver and liver envelope or abdominal contents. All blocks needed for organ location and soft tissue continuity within torso. Documentation. Permanent shipping and storage case.

Model Number
RS-550
Fission-Product Phantom System, includes: head, neck, neck cover plate for thyroid access, complete torso and gridded torso cover, inert heart, lungs, lymph nodes, thyroid, liver, kidneys, stomach, pancreas, spleen, small and large intestines. Stub legs with pivot bolts. Documentation. Permanent shipping and storage case.



Capsules
RS-520
Active Capsule (isotope and activity to be specified)
RS-521
Inert Capsule with sealing cap, to be filled by user

Thyroid Phantom
RS-542
Thyroid Phantom without head; consists of neck, hollow thyroid, thyroid cover, a portion of the cervical spine, sternum and clavicles
RS-545
Thyroid Phantom with head; (same as RS-542 but with head and full cervical spine)
RS-543A
Thyroid, solid, active
RS-534S
Thyroid, hollow, inert

Chest Overlay Plates
RS-513
(1, 2, 3, 4)
(A, B, C)    Chest Overlay Plate (Any of 4 thicknesses)
#1 – thinnest, #4 – thickest
=A) 87% adipose – 13% muscle
B) 50% adipose – 50% muscle
C) 100% muscle

RS-514
(A, B, C)    Chest Overlay Plates
Set of 4, in materials A, B, or C
