CIRS 600躯干模体,CIRS 600模体旨在为医学成像和剂量测量应用提供平均躯干模型（22 cm前后厚度）的准确模拟。用于制造模体的环氧材料提供诊断和治疗能量范围（40 keV到20 MeV）之间的最佳组织模拟。
CIRS 600躯干模体,CIRS 600模体不同于其他横断面剂量测量模型，模型600包括内部器官结构例如肺，心脏，肝脏，肾脏，脾脏和胰腺。所有模拟的器官都与实际器官的组织密度相匹配，可以清晰地显示出来。
模体的下半部分包含一个模拟30％脂肪和70％肌肉组织混合物的软弹丸材料。模拟肌肉材料层肋骨和脊柱。外部信封模拟43％脂肪和57％肌肉组织的混合物。标准模体由25毫米厚的连续部分组成。
CIRS 600躯干模体,CIRS 600模体特点和好处
包括内部器官结构
理想的校准，质量保证和培训的目的，当特定的内部器官感兴趣
可以配置为适应多种剂量测量介质
可用于任何X射线成像或治疗设备

CIRS 600躯干模体,CIRS 600模体包括的材料
组织相当的躯干
与骨骼腔 结构体
组织当量肺，
心脏，肝脏，胰脏， 脾脏和肾脏
泡沫衬里的手提箱

CIRS 600躯干模体,CIRS 600模体保修信息
4年保修

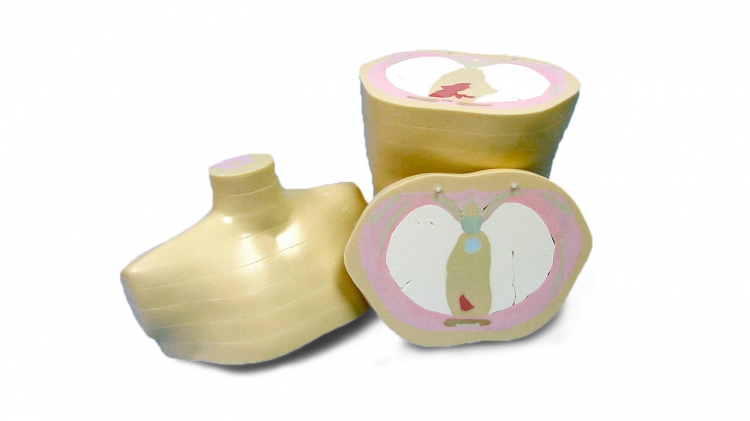

The CIRS Model 600 Anthropomorphic Torso Phantom is designed to provide an accurate simulation of an average torso (22 cm posterior-anterior thickness) for medical imaging and dosimetry applications. The epoxy materials used to fabricate the phantom provide optimal tissue simulation between the Diagnostic and Therapy energy range (40 keV to 20 MeV).

Unlike other cross-sectional dosimetry phantoms, the Model 600 includes internal organ structures such as the lungs, heart, liver, kidneys, spleen and pancreas. All simulated organs match the tissue density of actual organs and can be clearly visualized.

The lower portion of the phantom contains a soft bolus material simulating a mix of 30 percent adipose and 70 percent muscle tissue. Simulated muscle material layers the rib cage and vertebral column. The exterior envelope simulates a mix of 43 percent adipose and 57 percent muscle tissue.  Standard phantoms consist of 25 mm thick contiguous sections.

Includes internal organ structures

Ideal for calibration, QA and training purposes when specific internal organs are of interest

Can be configured to accommodate a multitude of dose measurement media

Usable on any X-ray imaging or treatment device
