HansRudolph校准注射器5520/5510/5550/5540/5530/5570/4900

型号：5520/5510/5550/5540/5530/5570/4900 类别：质控仪器品牌：Hans Rudolph pdf资料: HansRudolph校准注射器5520/5510/5550/5540/5530/5570/4900.pdf

采购热线：0755-28896837 13632925349 在线咨询产品

HansRudolph校准注射器5520/5510/5550/5540/5530/5570/4900详细介绍：

HansRudolph提供10、100、500、1000、3000和7000 ml的容量。可调挡块，用于每种注射器尺寸的其他较小行程。可选的出口直径。NIST可追溯性。100％泄漏测试。重新校准服务和贷款计划。

RUDOLPH VOLUME CALIBRATION SYRINGES Series 5520, 5510, 5550, 5540, 5530, 5570, 4900

HansRudolph校准注射器5520/5510/5550/5540/5530/5570/4900产品特性

•校准的注射器在全冲程体积范围为10毫升到7000毫升。

•精密缸径要么精细打磨硬阳极氧化铝或机械加工和抛光抛丙烯酸

•密封元件要么是专有的高磨损润滑橡胶，要么是机加工的平板弹簧

加载纯特氟隆夹套式

•活塞杆是磨铝与黑色阳极或注塑长玻璃填充尼龙

活塞杆刻度要么是车床切割(加工)，要么是激光标记

•可提供标准和定制尺寸的出口端口

•可调滑动正停止衣领为不同交付卷，包括收紧扳手

•现场可提供用于检测注射器泄漏的插头

•每个注射器体积认证和泄漏测试

汉斯鲁道夫校准注册器5520/5510/5550/5540/5530/5570/4900

3升注射器用于校准肺功能测试设备，包括：Koko肺活量计，Cybermedic Full Gas Systems，Morgan Scientific和Collins Full Gas Systems。

具有已知的校准体积作为标准的校准注射器提供了一种定期可靠地校准和测量现场呼吸量测量设备的精度的简便可靠的方法，以满足质量保证程序的要求。建议将三升作为测试肺活量计的最小容积。

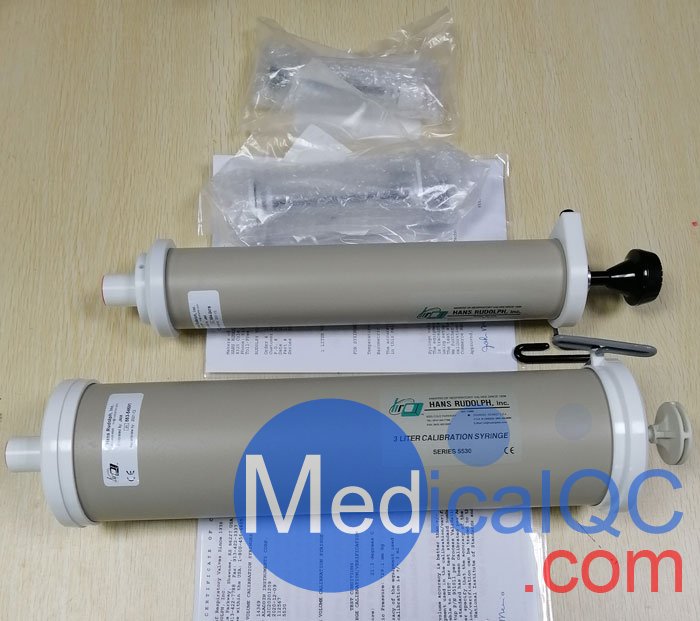

HansRudolph 5530/5520/5570/4900

HansRudolph校准注射器5520/5510/5550/5540/5530/5570/4900用途介绍：

容积校准注射器是设计用来测试和校准流量和体积的用于呼吸设备市场的测量设备。校准注射器为手动操作，通过驱动活塞杆进出气缸总成的注射器组件的出口端口应安装在被测设备上。汉斯·鲁道夫

提供定制的出口端口，以配合市场上的任何肺活量测量装置的校准注射器在启动时应将已知体积的空气输送到流量或体积中测量设备。操作员将所送的校准注射器体积与所送的注射器体积进行比较从被测设备获得的体积结果，以确定准确度。

校准注射器用于呼吸流量计的校准

容积式肺量计。这些设备是肺活量测定系统的典型组成部分

以及肺功能测试系统校准注射器用于肺部功能测试实验室，生物医学工程校准实验室，私人医生办公室，大学，研究中心和呼吸系统制造商。

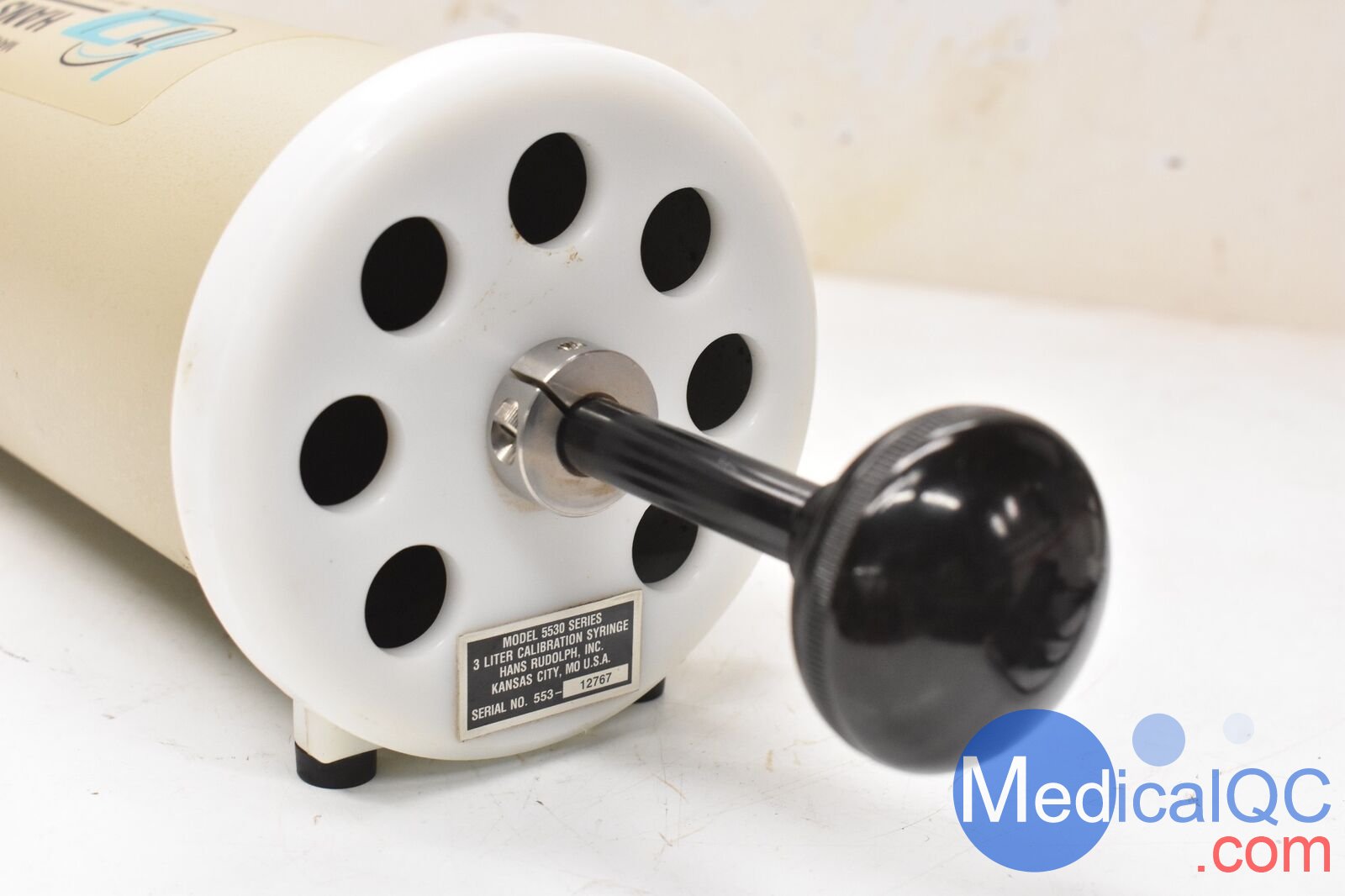

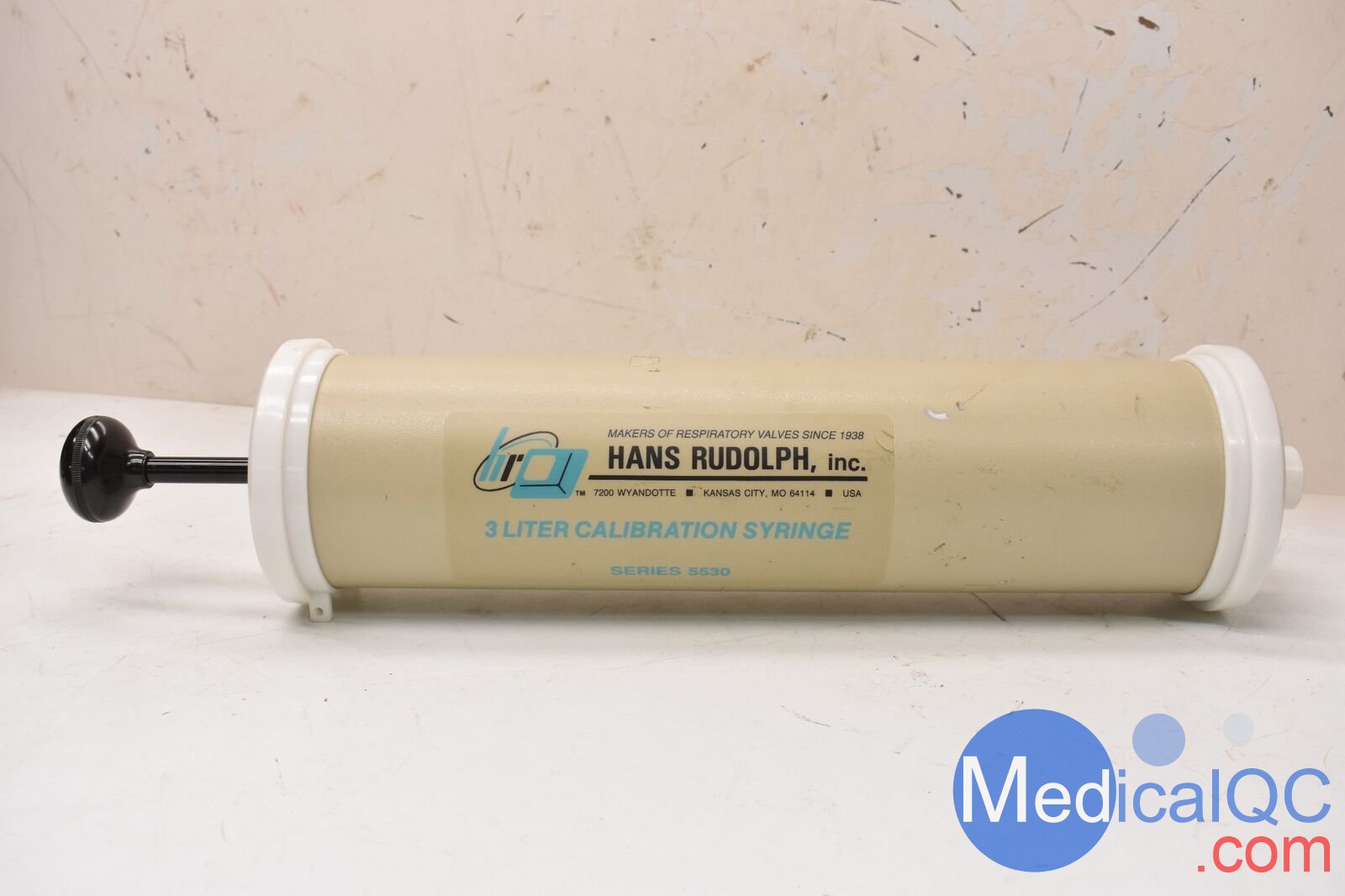

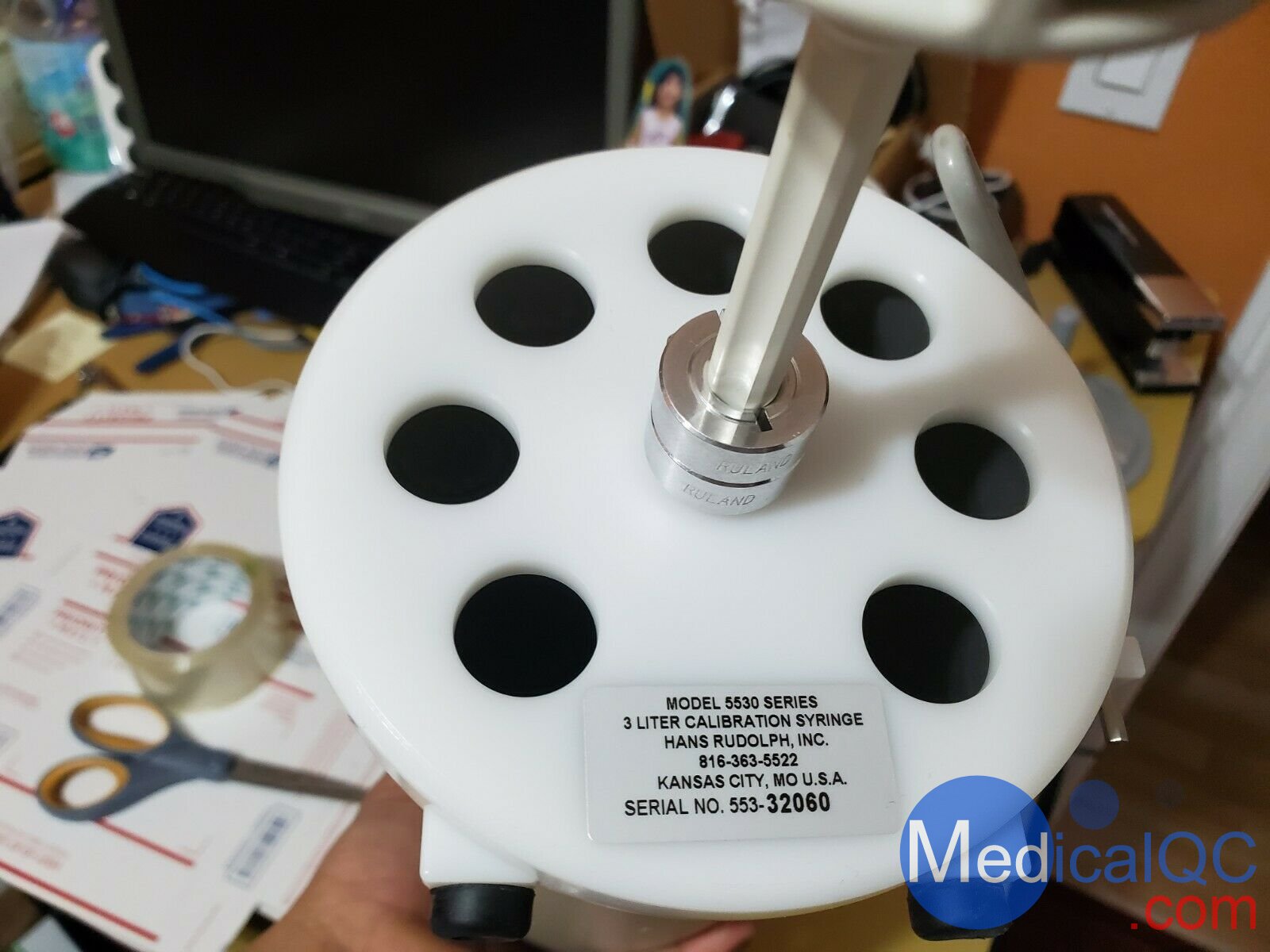

Hans Rudolph 5530校准注射器

5520, 5510, 5550, 5540, 5530, 5570, 4900

HansRudolph校准注射器5520/5510/5550/5540/5530/5570/4900参数选型表：

型号/参数		5520	5510	5550	5540	5530	5570	4900
精度 ±0.5% FS	ml	±0.05	±0.5	±2.5	±5.0	±15.0	±15.0	±35.0
总容积	ml	10	100	500	1000	3000	3000	7000
最小容积	ml	2	20	50	50	100	3000	100
冲程容积	in	3	5	6.25	12.38	14.75	14.75	15
冲程容积	cm	7.6	12.7	15.8	31.5	37.5	37.5	38.1
气缸内径	in	0.50	1.25	2.50	2.50	4.0	4.0	6.0
气缸内径	cm	1.27	3.17	6.35	6.35	10.16	10.16	15.24
重量	lb	.17	.39	1.7	2	3.7	3.6	10
重量	gm	75	175	771	907	1690	1655	4536

订货号：

Order Part Number

Series

Description (Total Volume &
Smallest Graduation)

Outlet Port Size

Outlet Port Type

Threaded removable
Integral to End Plate

112380

5520

10 ml Syringe
(2 ml graduations)

15mm OD Medical Taper 10.5mm ID

112381

5520

10 ml Syringe
(2 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper

112378

5510

100 ml Syringe
(20 ml graduations)

15mm OD Medical Taper 10.5mm ID

112379

5510

100 ml Syringe
(20 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper

112742

5550

500 ml Syringe
(50 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID

112743

5550

500 ml Syringe
(50 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper

112744

5550

500 ml Syringe
(50 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper

112745

5550

500 ml Syringe
(50 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)

112746

5550

500 ml Syringe
(50 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper

112706

5540

1000 ml Syringe
(50 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID

112707

5540

1000 ml Syringe
(50 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper

112708

5540

1000 ml Syringe
(50 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper

112709

5540

1000 ml Syringe
(50 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)

112710

5540

1000 ml Syringe
(50 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper

112028

5530

3000 ml Syringe
(100 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID

112231

5530

3000 ml Syringe
(100 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper

112232

5530

3000 ml Syringe
(100 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper

112233

5530

3000 ml Syringe
(100 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)

112567

5530

3000 ml Syringe
(100 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper

113391

5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)

1.375” (35mm) OD
1.125” (28.6mm) ID

113638

5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper

113611

5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)

22mm OD Medical Taper 15mm ID Medical Taper

113392

5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)

1.125” (28.6mm) OD
22mm ID Medical Taper

113568

5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)

1.125” (28.6mm) OD
22mm ID Medical Taper

112092

4900

7000 ml Syringe
(100 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID

112234

4900

7000 ml Syringe
(100 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper

112235

4900

7000 ml Syringe
(100 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper

112236

4900

7000 ml Syringe
(100 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)

112568

4900

7000 ml Syringe
(100 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper

HansRudolph 5520/5510/5540/5530/5570/4900
